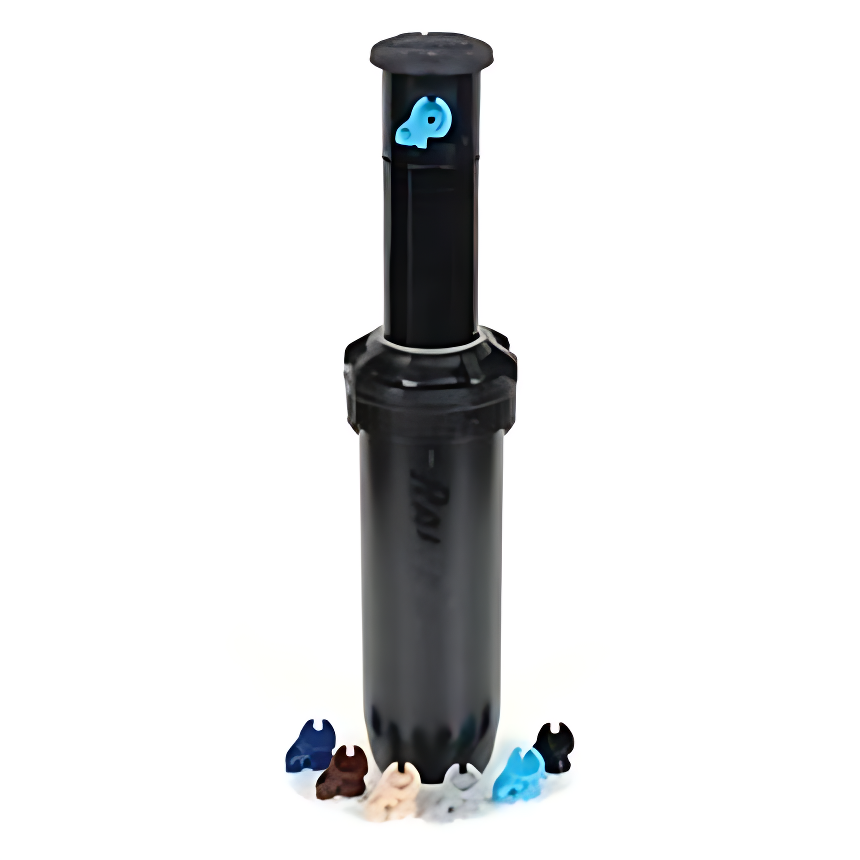

The Rain Bird Falcon 6504 is ideal for large turf sites such as parks, athletic fields, cemeteries, schools and commercial sites with spacing up to 19.8 m. With the Falcon 6504 rotor, you can have it all – uncompromising performance, superior distribution, reliability and durability.
Precipitation Rate 9 to 29 mm/h
Radius 11.9 to 19.8m
Flow Rate 0.66 to 4.93 m3/h; 0.18 to 1.37 l/s
Pressure 30 to 90 psi (2.1 to 6.2 Bars)
Coverage Arc Part Circle Easy arc adjustment through the top of the rotor from 40° to 360°
Patented Rain Curtain™ nozzles have three ports for optimal long-range, mid-range, and close-in watering, for green grass even in the heat of summer.
Nozzles are interchangeable from the front with no special tools.
Self-adjusting stator does not require replacement when changing nozzles.
Radius adjustment screw allows radius reduction up to 25% without changing nozzles.
Small 5.1 cm exposed diameter reduces possibility of injury in play areas.
Patented, pressure-activated wiper seal and tapered riser stem on both plastic and stainless steel models protect internals from debris to ensure positive pop-up and retraction.
10.2 cm pop-up height to centre line of nozzle clears taller turfgrass
1” NPT female or BSP threaded inlet
Pop-up Height: 10.2 cm
Overall Body Height 21.6 cm
Note: Pop-up height measured from the cover to center of nozzle. Overall body height is measured popped down.
