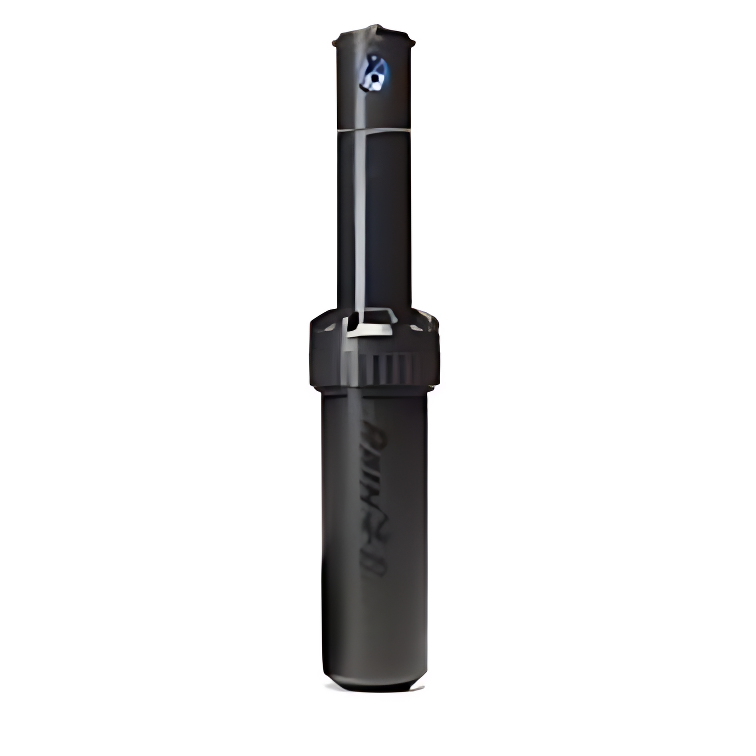

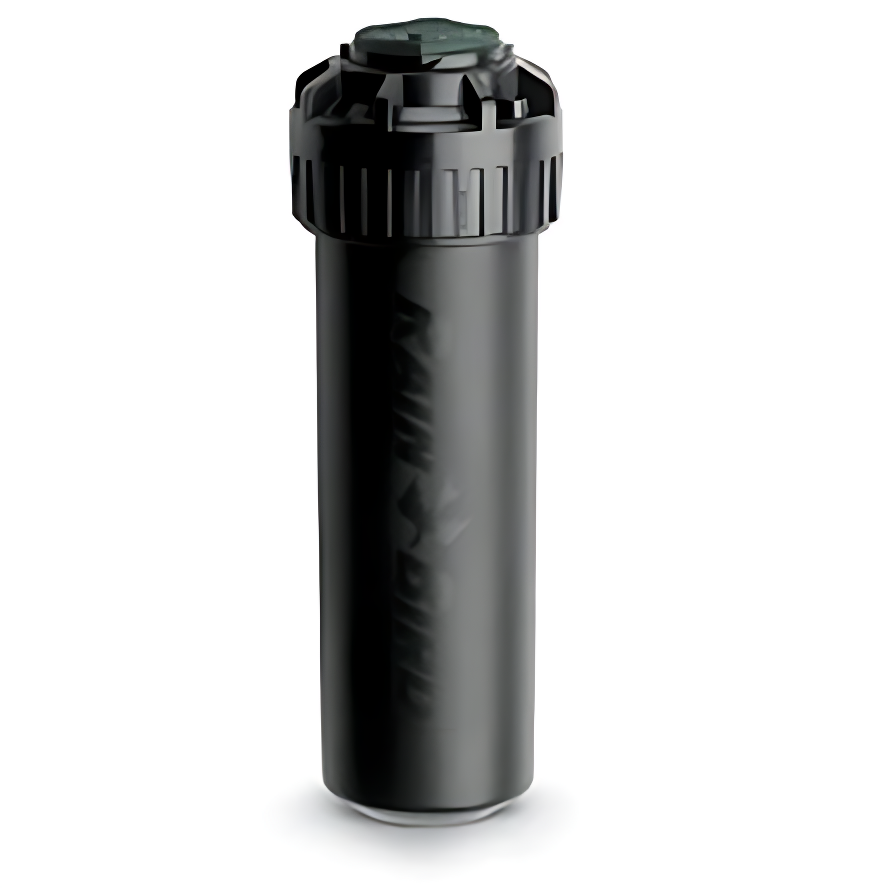

The Rain Bird 5000 Series product line is the durable, reliable rotor for residential and commercial applications. Its Rain Curtain™ nozzle set includes 12 nozzles (8 standard and 4 low angle) to ensure you always have the correct nozzle in hand for the project.
Precipitation Rate 5 to 38 mm/hr
Flow Rate 3.0 to 36.6 l/m
Radius 7.6 to 15.2 m Radius may be reduced up to 25% with nozzle retention screw
Pressure 25 to 65 psi (1.7 to 4.5 bar)
Arc Part Circle
Thicker rubber cover
Self-Flushing Arc Adjustment Port: as the riser stem pops-up and retracts a jet of water cleans out the arc adjustment slot
Slip Clutch: quickly set the left edge of the 5000 Series rotor
Self-flushing tapered stem design and integrated triple-blade multi-function wiper seal protect internals from debris
Heavy duty case y Part Circle: Reversing 40–360° rotation Full Circle: Non-reversing 360° rotation
Top-adjust arc adjustment requiring only a flat-blade screwdriver
Tree of nozzles including 8 Rain Curtain (25° trajectory) and 4 low-angle (10° trajectory) provides 7.6 to 15.2m) distance of throw
Rain Curtain Nozzle Features:
Large droplets for superior wind resistance
Effective close-in watering
Even distribution over the entire radius
SPECIFICATIONS:
3/4” NPT female bottom threaded inlet
Part Circle: Reversing 40–360°
Exposed Surface Diameter: 15/8” (4.1 cm)
Pop-up Height: 10.2 cm
Overall Body Height 18.5 cm
Note: Pop-up height measured from the cover to the nozzle. Overall body height is measured popped down
