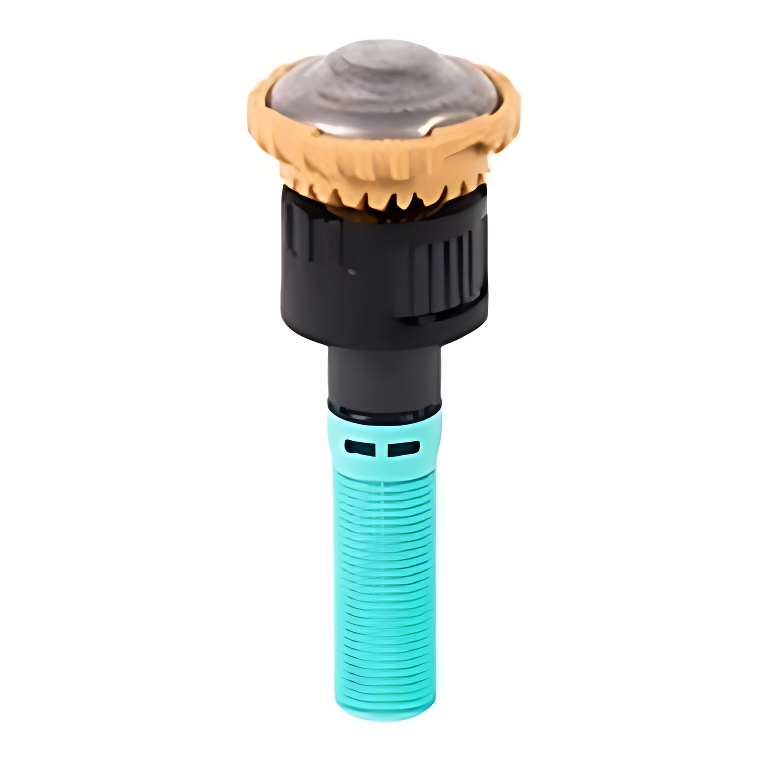

Rain Bird R-VAN Adjustable Rotary Nozzles provide water efficiency and design flexibility. R-VAN Adjustable Rotary Nozzles feature rotating stream technology which uniformly delivers water at a low precipitation rate, significantly reducing runoff and erosion.
Retrofitting standard spray nozzles with R-VAN Adjustable Rotary Nozzles can reduce flow by up to 60% and improve water efficiency by up to 30%. Nozzle spray pattern and distance are easily adjusted by hand with no tools required.
Thick wind-resistant streams ensure efficient performance in adverse real world conditions. R-VAN’s large water droplets cut through the wind, so water stays in the target zone without misting or fogging. An exclusive manual flush feature keeps nozzles clear of dirt and debris even in extreme conditions.
R-VAN-18
Nozzle Pattern Adjustable Arc
Pressure Range 30 to 55 psi (2.1 to 3.8 bar)
Recommended Operating Pressure 45 psi (3.1 bar)
Arc 45° - 270° Adjustable
Adjustments Adjust the arc and radius while water is running
Matched precipitation across radius, arcs, and pattern types
Low precipitation rate reduces run-off and erosion
Adjust arc and radius without tools
A pull-up to flush feature clears the nozzle of dirt and debris
Colour-coded and laser marked for easy identification of R-VAN model
Maintains efficient performance at high operating pressures without misting or fogging
Compatible with all models of Rain Bird spray bodies, risers and adapters
